Hello,

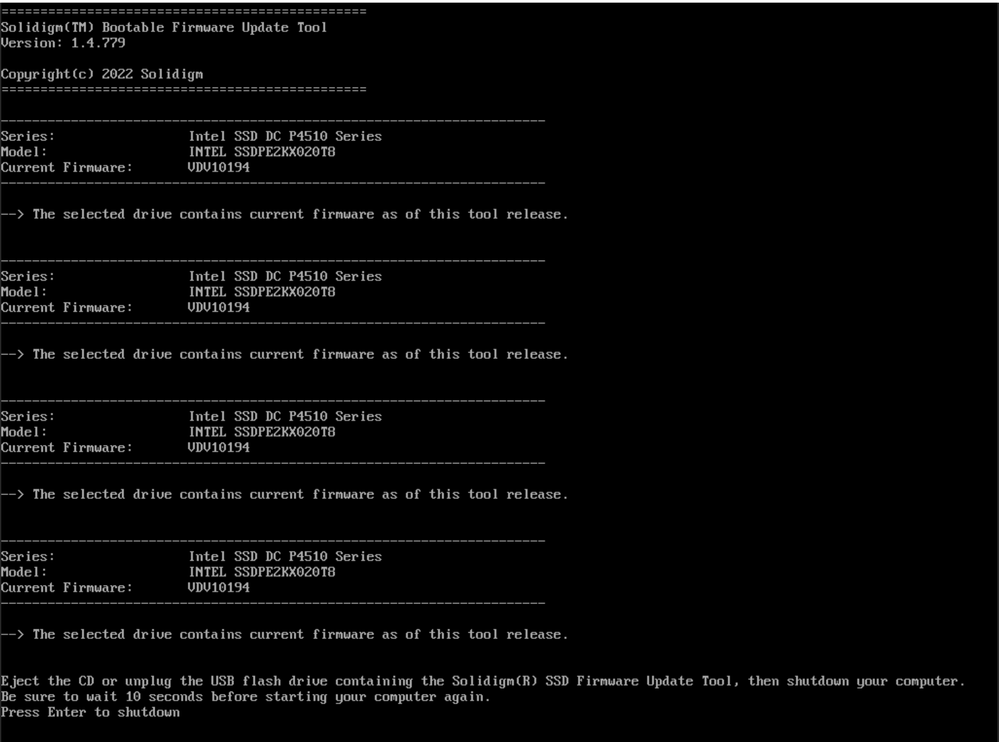

I was able to retrieve and attach the namespace for nvme0, nvme1 and nvme3. Now I have a new problem. All drives used to show as 2TB now nvme0/1/3 are showing 1.92TB, nvme2 which flashed correctly shows the correct size of 2TB. I am unable to add these back to my raid now as they are not the correct 2TB size. smartctl does not show any unallocated space. Is there any way to retrieve the lost space? The drives are all identical model and all functioned at 2tb size before the firmware update.
Below is the output of nvme0 (incorrect size) and then nvme2 (correct size):
debian# nvme attach-ns /dev/nvme0 -n 1 -c 0
attach-ns: Success, nsid:1
root@debian:~# nvme ns-rescan /dev/nvme3
root@debian:~# nvme list
Node Generic SN Model Namespace Usage Format FW Rev
--------------------- --------------------- -------------------- ---------------------------------------- --------- -------------------------- ---------------- --------
/dev/nvme3n1 /dev/ng3n1 BTLJ9XXXXXP0BGN INTEL SSDPE2KX020T8 1 1.92 TB / 1.92 TB 512 B + 0 B VDV10194
/dev/nvme2n1 /dev/ng2n1 BTLJ9XXXXXP0BGN INTEL SSDPE2KX020T8 1 2.00 TB / 2.00 TB 512 B + 0 B VDV10194
/dev/nvme1n1 /dev/ng1n1 BTLJ9XXXXXP0BGN INTEL SSDPE2KX020T8 1 1.92 TB / 1.92 TB 512 B + 0 B VDV10194
/dev/nvme0n1 /dev/ng0n1 BTLJ9XXXXXP0BGN INTEL SSDPE2KX020T8 1 1.92 TB / 1.92 TB 512 B + 0 B VDV10194
root@debian:~#
root@debian:~# nvme list-ns /dev/nvme0
[ 0]:0x1
root@debian:~# nvme id-ns -H /dev/nvme0n1
NVME Identify Namespace 1:
nsze : 0xdf8fe2b0
ncap : 0xdf8fe2b0
nuse : 0xdf8fe2b0
nsfeat : 0
[4:4] : 0 NPWG, NPWA, NPDG, NPDA, and NOWS are Not Supported
[3:3] : 0 NGUID and EUI64 fields if non-zero, Reused
[2:2] : 0 Deallocated or Unwritten Logical Block error Not Supported
[1:1] : 0 Namespace uses AWUN, AWUPF, and ACWU
[0:0] : 0 Thin Provisioning Not Supported
nlbaf : 1
flbas : 0
[6:5] : 0 Most significant 2 bits of Current LBA Format Selected
[4:4] : 0 Metadata Transferred in Separate Contiguous Buffer
[3:0] : 0 Least significant 4 bits of Current LBA Format Selected
mc : 0
[1:1] : 0 Metadata Pointer Not Supported
[0:0] : 0 Metadata as Part of Extended Data LBA Not Supported
dpc : 0
[4:4] : 0 Protection Information Transferred as Last 8 Bytes of Metadata Not Supported
[3:3] : 0 Protection Information Transferred as First 8 Bytes of Metadata Not Supported
[2:2] : 0 Protection Information Type 3 Not Supported
[1:1] : 0 Protection Information Type 2 Not Supported
[0:0] : 0 Protection Information Type 1 Not Supported
dps : 0
[3:3] : 0 Protection Information is Transferred as Last 8 Bytes of Metadata
[2:0] : 0 Protection Information Disabled
nmic : 0
[0:0] : 0 Namespace Multipath Not Capable
rescap : 0
[7:7] : 0 Ignore Existing Key - Used as defined in revision 1.2.1 or earlier
[6:6] : 0 Exclusive Access - All Registrants Not Supported
[5:5] : 0 Write Exclusive - All Registrants Not Supported
[4:4] : 0 Exclusive Access - Registrants Only Not Supported
[3:3] : 0 Write Exclusive - Registrants Only Not Supported
[2:2] : 0 Exclusive Access Not Supported
[1:1] : 0 Write Exclusive Not Supported
[0:0] : 0 Persist Through Power Loss Not Supported
fpi : 0
[7:7] : 0 Format Progress Indicator Not Supported
dlfeat : 0
[4:4] : 0 Guard Field of Deallocated Logical Blocks is set to 0xFFFF
[3:3] : 0 Deallocate Bit in the Write Zeroes Command is Not Supported
[2:0] : 0 Bytes Read From a Deallocated Logical Block and its Metadata are Not Reported
nawun : 0
nawupf : 0
nacwu : 0
nabsn : 0
nabo : 0
nabspf : 0
noiob : 0
nvmcap : 1,920,383,410,176
mssrl : 0
mcl : 0
msrc : 0
nulbaf : 0
anagrpid: 0
nsattr : 0
nvmsetid: 0
endgid : 0
nguid : 01000000010000005cd2e437fd3f5051
eui64 : 5cd2e437fd3f0100
LBA Format 0 : Metadata Size: 0 bytes - Data Size: 512 bytes - Relative Performance: 0x2 Good (in use)
LBA Format 1 : Metadata Size: 0 bytes - Data Size: 4096 bytes - Relative Performance: 0 Best
root@debian:~#
root@debian:~# smartctl -a /dev/nvme0
smartctl 7.3 2022-02-28 r5338 [x86_64-linux-6.1.0-39-amd64] (local build)
Copyright (C) 2002-22, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Number: INTEL SSDPE2KX020T8
Serial Number: BTLJ9XXXXXP0BGN
Firmware Version: VDV10194
PCI Vendor/Subsystem ID: 0x8086
IEEE OUI Identifier: 0x5cd2e4
Total NVM Capacity: 1,920,383,410,176 [1.92 TB]
Unallocated NVM Capacity: 0
Controller ID: 0
NVMe Version: 1.2
Number of Namespaces: 128
Local Time is: Mon Sep 15 08:01:25 2025 PDT
Firmware Updates (0x18): 4 Slots, no Reset required
Optional Admin Commands (0x0006): Format Frmw_DL
Optional NVM Commands (0x0006): Wr_Unc DS_Mngmt
Log Page Attributes (0x0e): Cmd_Eff_Lg Ext_Get_Lg Telmtry_Lg
Maximum Data Transfer Size: 32 Pages
Warning Comp. Temp. Threshold: 70 Celsius
Critical Comp. Temp. Threshold: 80 Celsius
Supported Power States
St Op Max Active Idle RL RT WL WT Ent_Lat Ex_Lat
0 + 14.00W - - 0 0 0 0 0 0
=== START OF SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
SMART/Health Information (NVMe Log 0x02)
Critical Warning: 0x00
Temperature: 25 Celsius
Available Spare: 100%
Available Spare Threshold: 10%
Percentage Used: 0%
Data Units Read: 937,036 [479 GB]
Data Units Written: 8,674,810 [4.44 TB]
Host Read Commands: 11,134,691
Host Write Commands: 420,128,424
Controller Busy Time: 15
Power Cycles: 103
Power On Hours: 3,722
Unsafe Shutdowns: 96
Media and Data Integrity Errors: 0
Error Information Log Entries: 0
Warning Comp. Temperature Time: 0
Critical Comp. Temperature Time: 0
Error Information (NVMe Log 0x01, 16 of 64 entries)
No Errors Logged
root@debian:~#
root@debian:~# smartctl -a /dev/nvme2
smartctl 7.3 2022-02-28 r5338 [x86_64-linux-6.1.0-39-amd64] (local build)
Copyright (C) 2002-22, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Number: INTEL SSDPE2KX020T8
Serial Number: BTLJ9XXXXXP0BGN
Firmware Version: VDV10194
PCI Vendor/Subsystem ID: 0x8086
IEEE OUI Identifier: 0x5cd2e4
Total NVM Capacity: 2,000,398,934,016 [2.00 TB]
Unallocated NVM Capacity: 0
Controller ID: 0
NVMe Version: 1.2
Number of Namespaces: 128
Local Time is: Mon Sep 15 08:01:47 2025 PDT
Firmware Updates (0x18): 4 Slots, no Reset required
Optional Admin Commands (0x000e): Format Frmw_DL NS_Mngmt
Optional NVM Commands (0x0006): Wr_Unc DS_Mngmt
Log Page Attributes (0x0e): Cmd_Eff_Lg Ext_Get_Lg Telmtry_Lg
Maximum Data Transfer Size: 32 Pages
Warning Comp. Temp. Threshold: 70 Celsius
Critical Comp. Temp. Threshold: 80 Celsius
Supported Power States
St Op Max Active Idle RL RT WL WT Ent_Lat Ex_Lat
0 + 14.00W - - 0 0 0 0 0 0
=== START OF SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
SMART/Health Information (NVMe Log 0x02)
Critical Warning: 0x00
Temperature: 23 Celsius
Available Spare: 100%
Available Spare Threshold: 10%
Percentage Used: 0%
Data Units Read: 1,843,689 [943 GB]
Data Units Written: 6,466,647 [3.31 TB]
Host Read Commands: 13,268,824
Host Write Commands: 220,049,759
Controller Busy Time: 20
Power Cycles: 103
Power On Hours: 3,722
Unsafe Shutdowns: 96
Media and Data Integrity Errors: 0
Error Information Log Entries: 0
Warning Comp. Temperature Time: 0
Critical Comp. Temperature Time: 0
Error Information (NVMe Log 0x01, 16 of 64 entries)
No Errors Logged
root@debian:~#
